IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output

Usage : PRESSURE SENSOR

Brand Name : IFM

Model Number : PQ3834

Certification : CE

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Output : 4-20mA, 0-10V, 0-5V

Highlight : IFM Differential Pressure Sensor, Pneumatic Devices IFM Pressure Sensor, PQ3834 Differential Pressure Sensor

Storage Temperature [°C : 8

Contact Now

IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output

Product Specifications

Model Number	PQ3834
Usage	PRESSURE SENSOR
Output	4-20mA, 0-10V, 0-5V
Storage Temperature [°C]	8

IFM Differential Pressure Sensor

Pneumatic Devices IFM Pressure Sensor

PQ3834 Differential Pressure Sensor

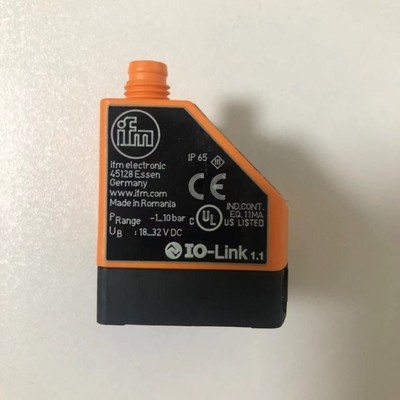

IFM PQ3834 Pressure Sensor for Pneumatic Devices

The IFM PQ3834 is a robust pressure sensor engineered for reliable monitoring of system pressure in pneumatic and compressed air systems. With a measurement range of -1 to 10 bar (-15 to 145 psi), it withstands extreme overpressure (30 bar burst pressure) and vacuum (-1000 mbar), ensuring durability in harsh industrial environments.

IFM Differential Pressure Sensor The Perfect Solution for Pneumatic Devices 0-10V Output

Key Features

Wide Measurement Range: -1 to 10 bar (-15 to 145 psi / -30 to 296 inHg / -100 to 1000 kPa) for flexible pneumatic system monitoring.
Extreme Pressure Resistance: Burst pressure: 30 bar (435 psi), overpressure tolerance: 12 bar (174 psi), vacuum resistance: -1000 mbar.
Visual Indication System: Tilted LED display with red/green color coding to identify acceptable pressure ranges at a glance.
Dual Output Capability: 1 programmable switching output and 1 analog output (configurable for industrial control systems).
Industrial Compatibility: Gold-plated contacts for reliable electrical connections in harsh environments.
Media temperature range: 0-60°C, suitable for compressed air and pneumatic fluids.
Electrical Specifications: Operating voltage: 18-32 V DC (SELV/PELV compliant), current draw: <50 mA. Inverse and overvoltage protection (<40 V) for system safety.
Mounting & Interface: Threaded connections: G 1/8" internal thread and M5 internal thread for versatile installation.
