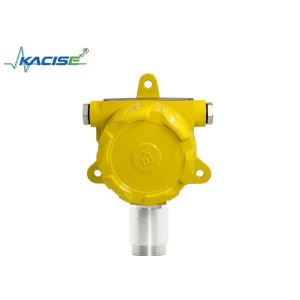

KFBH - 60 Refinery Gas Guardian

  • 1
  • 2

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Precision : ＜5% F.S.

Resolution : 1%LEL, 0.1ppm, 1ppm, 0.01%vol

Recovery Time : ≦10S

Response Time : ≦30S

Repeatability : ≦±1%

Working temperature : -20℃-55℃

Contact Now

KFBH - 60 Refinery Gas Guardian

Introduction

Refinery Gas Guardian: KFBH - 60 is specifically designed for refineries. Using a wall, pipeline, or flow - through sampling method, it quickly and accurately detects gas leaks. With a response time of ≤30S and recovery time of ≤10S, it ensures timely alerts. Its high - brightness LED display shows real - time gas concentration. The device has a compact design with dimensions of 190×150×95mm and is suitable for long - term installation in refineries to prevent gas - related accidents.

Product Features

1. Multiple sampling methods for refinery - specific needs.

2. Fast response and recovery times.

3. High - brightness LED display for easy monitoring.

4. Compact design for easy installation.

Technical Parameters

Gas Detected Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF
Detection principle catalytic or electrochemical or PID's or infrared principles
Sampling Method wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution 1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision ＜5% F.S.
Output signal 4-20mA ,0-5V, RS485, relays, wireless digital (optional)
Response Time ≦30S
Recovery Time ≦10S
Repeatability ≦±1%
Linearity error ≦±1%
Zero shift ≦±1% (FS / year)
Display Technology Display high brightness LED display
Connection mode G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm
Working temperature -20℃-55℃
Explosion-Proof Ex db IIC T6 Gb
Working voltage DC 24V
Dimensions 190×150×95mm
Cable requirement 4-20mA, RVVP, 3-line, ≧1.5 mm2
Modbus, RVVP, 4-line, ≧1.5 mm2

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
