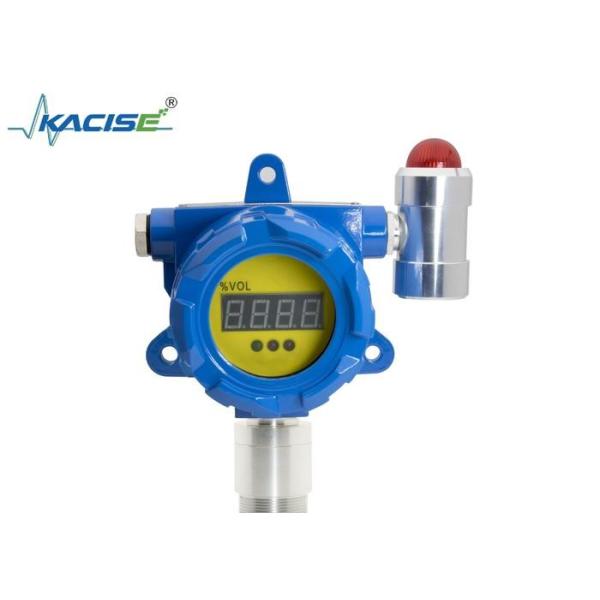

KFBH - 60 Chemical Facility Gas Watchdog

  • 1
  • 2
  • 3

Brand Name : KACISE

Model Number : KFBH-60

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Power supply : DC24V±10%

Response time : 30S

Explosion proof grade : Ex db IIC T6 Gb

Working humidity : 0-95%RH

Output current : 4-20mA

Working temperature : -20℃～50℃

Contact Now

KFBH - 60 Chemical Facility Gas Watchdog

Introduction

The Chemical Facility Gas Watchdog: KFBH - 60 is an essential gas detection solution for chemical facilities. It accepts single inputs of 4 - 20mA and RS485, providing flexibility in data collection. With a humidity tolerance of 0 - 95%RH, it can function in humid chemical plant environments. Its compact dimensions of 190x150x95mm ensure space - efficient installation

Product Features

1. Multiple input options (4 - 20mA and RS485) for flexible data collection.

2. High humidity tolerance (0 - 95%RH).

3. Compact design for space - efficient installation

Technical Parameters

Product type KFBH-60 fixed gas detector/transmitter
Explosion proof grade Ex db IIC T6 Gb
Response time 30S
Power supply DC24V±10%
Working temperature -20℃～50℃
Output current 4-20mA
Working humidity 0-95%RH
Contact output Free contact output, max power 1kW
Single input 4~20mA and RS485
Installation method Wall-mounted
Shell material Aluminum
Dimensions 190x150x95mm(L×W×H)

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
