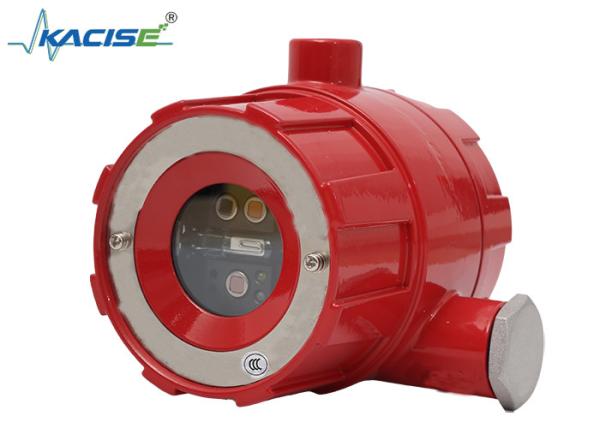

KAN140 Intelligent Composite Flame Detector

Brand Name : KACISE

Model Number : KAN140

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Operating Voltage and Pressure Range : DC24V±6V, 86KPa - 106KPa

Electrical Interface and Sensitivity Level : G3/4" internal thread, Class I

Sensor Lifespan and Shell Material : 3 years (typical value), explosion - proof sapphire glass

Viewing Angle Range and Response Time : Infrared 90°, Ultraviolet 120°, <30S

Explosion - proof Mark and Protection Level : Ex db IIC T6 Gb : Ex tb IIIC T80°C Db IP66

Fault Relay : 1A/30VDC

Contact Now

KAN140 Intelligent Composite Flame Detector

Product Introduction

The shell is made of a thickened explosion - proof sapphire panel. The detector uses a special filter glass panel for filtering light, which can filter out the interference of stray light. The flame detection distance can reach up to 50 meters; the infrared detection viewing angle is 90°, and the ultraviolet detection viewing angle is 120°. The detector is a composite red - ultraviolet flame detection device that can collect radiation information from light sources in different wavelength bands, which can greatly enhance the stability of the detector. The function of reporting a fault when the glass is dirty is optional.

KAN140 Intelligent Composite Flame Detector

Product Description

Operating Voltage and Pressure Range Electrical Interface and Sensitivity Level Sensor Lifespan and Shell Material Detection Distance
DC24V±6V, 86KPa - 106KPa G3/4" internal thread, Class I 3 years (typical value), explosion - proof sapphire glass 25m (0.33m×0.33m ethanol fire, normal heptane fire)
≤60m (0.5m×0.5m gasoline fire)
Viewing Angle Range and Response Time Explosion - proof Mark and Protection Level LED Indication Spectral Response
Infrared 90°, Ultraviolet 120°, <30S Ex db IIC T6 Gb : Ex tb IIIC T80°C Db IP66 Operating indication: green light flashing
Alarm indication: red light always on
Fault indication: yellow light always on		 Ultraviolet tube: 185nm - 260nm
Infrared tube: 3.9μm - 5.1μm
Signal Output and Operation Mode Operating Temperature and Humidity Fire Alarm Relay Fault Relay
4 - 20mA, relay passive, magnet adjustable -10°C - +55°C, 0 - 95%RH (non - condensing) 1A/30VDC
0.3A/60VDC
0.5A/125AC		 1A/30VDC
0.3A/60VDC
0.5A/125AC
