Brand Name : KACISE
Model Number : KWS-201
Certification : CE
Place of Origin : china
MOQ : 1PCS
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000 Piece/Pieces per Week negotiable
Delivery Time : 5-8 work days
Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring range : 0-100mg/L (optional 0-1000mg/L)
Resolution : 0.01mg/L
Measurement accuracy : ±10% or ±0.5mg/L (whichever is greater)
Sensor interface : Support RS-485, MODBUS protocol
Product Description
The WS-201 on-line ammonia nitrogen sensor is a remarkable device for water quality monitoring. It is engineered to collect ammonia nitrogen data in water continuously for a long time without interruption. Utilizing advanced sensing techniques, it offers high precision and reliability. Whether in industrial water systems, environmental water bodies, or research settings, it provides a constant stream of accurate ammonia nitrogen information. Its durable build and stable performance ensure it can endure various water conditions. With the ability to maintain long-term data collection, it aids in understanding water quality trends, enabling timely interventions and informed decision-making to safeguard water resources and associated ecosystems.
Feature
Parameter
Name | Ammonia Nitrogen sensor |
Measuring range | 0-100mg/L (optional 0-1000mg/L) |
Measurement accuracy | ±10% or ±0.5mg/L (whichever is greater) |
Resolution | 0.01mg/L |
pH range | 4-10pH |
pH accuracy | ±0.1pH |
pH resolution | 0.01 |

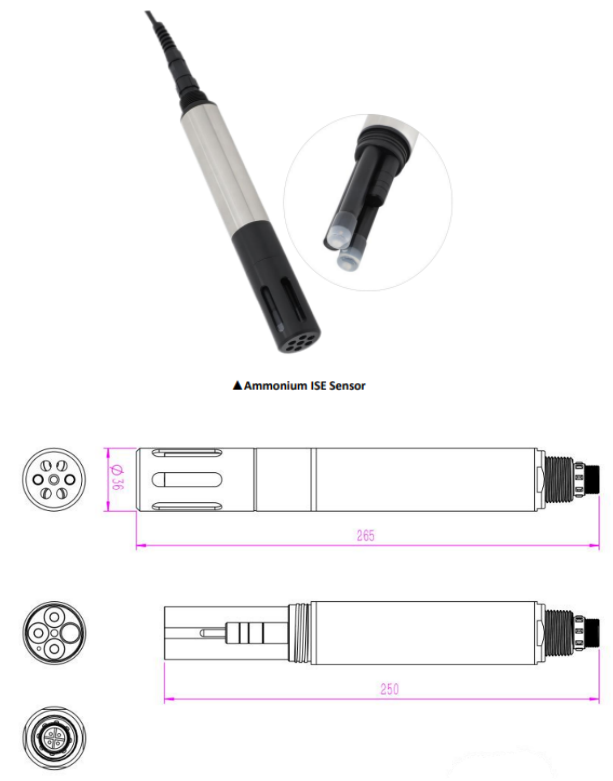

Sensor size | φ36mm*265rmm (with protective cover) |
Protection level | IP68 |
Maximum depth | 10 meters underwater |
Temperature range | 0-50℃ |
Sensor interface | Support RS-485, MODBUS protocol |
Assembly | NPT3/4 thread, immersion installation |
Power consumption | 0.25W (recommended power supply: DC 9-24V, ≥1A) |
Probe cable length | 10 meters (default), customizable |
Calibration | 1-point or 2-point calibration |
Casing | POM+316L (customizable titanium alloy) |
![]() |
Continuous Water Ammonia Nitrogen Sensor with 0-100mg/L Measuring Range and RS-485 Interface Images |
