low price 0~5 analog Pressure Sensor
1. Specification:
Spec. | Value |
Pressure range | 0~0.01MPa......40MPa |
Load pressure | 1.5times nominal value pressure (1.5X) |
Rupture pressure | 3times nominal value pressure (3X) |
Accuracy | ±0.25%F.S, ±0.5%F.S |
Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S |
Operating temperature | -40°C~85°C |
Compensation temperature | -10°C~70°C |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti |
Electrical performance | 2 wire system | 3 wire system |
Output signal | 4~20mA | 0~5V | 0~10V |
Power supply | 10~30Vdc | 6~24Vdc/10~36Vac | 11~30Vdc/20~36Vac |
Load pressure | (U-10)/0.02(Ω) | >100kΩ |
Insulation | >100M Ω@50V |
Electrical connection | Connector DIN43650, IP65 |
Air plug GX16-7, IP45 |
Waterproof outlet, IP68 |
Pressure port | M20×1.5, G1/2, G1/4, NPT1/4, NPT1/2 |
Response time | 10ms |
Certificattion | Intrinsically safe mode E, Isolation explosion proof D, CE |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
2. Feature:
1). High performance oiled diffusion silicon within core elements,
2). Material safety, protection for reversed polarity and over voltage,
3). High reliability and stability, stainless shield,
4). Multi structure, wide range output supply.

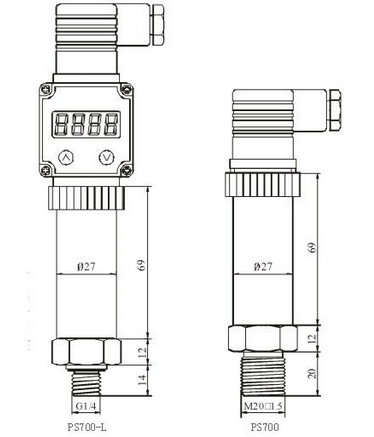

3. Electronic interface and signals definition
4. Application:
1). Atmosphere measure
2). Aviation, spaceflight, navigation
3). Packaging machinery
4). Petrochemical industry
5). Meteorological monitoring
6). Automatic detection system
7). The mine wind pressure test
8). Top floor apartment management
It can be used widely in fluidic as well as food and drink mechanical equipment.

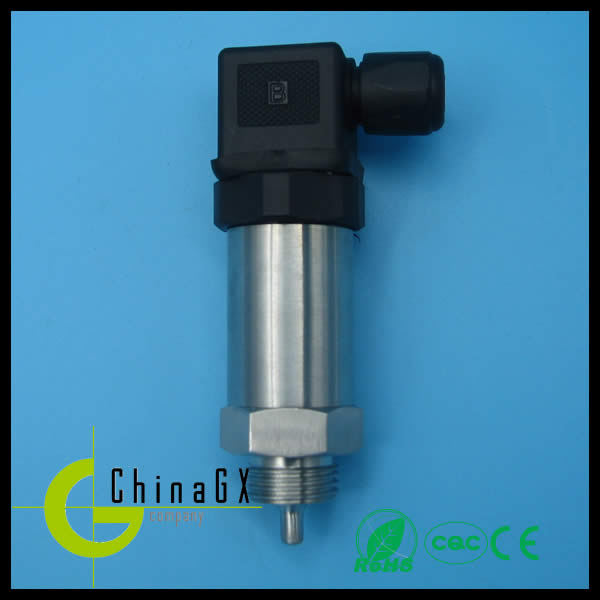

5. Product picture
*****************************************************************************************************************
