High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output

Place of Origin : Shaanxi, China

Brand Name : GX support OEM

Model Number : GXseries

Packaging Details : carton or customers requests available

Supply Ability : 10000 Piece/Pieces per Month negotiable

Price : $50.00 - $180.00/pieces

Certification : certificate of explosion-proof, CE

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Accuracy : 0.5%, 1%, 2%

Temperature : -20°C~60°C

Medium : Oil ,water, fuel ,waste water

Product name : High Performance Electronic Pressure Switch

feature : oil pressure switch

Port : Shanghai or other

Contact Now

High Performance Oil Pressure Switch

1. Specification:

Spec.

Value

Pressure range

0~0.1MPa......60MPa; 1bar…600bar; 14.5psi…8700psi

10000MmH20…6118000mmH2O

0.98atm…592stm

Load pressure

1.5times nominal value pressure (1.5Χ)

Rupture pressure

3times nominal value pressure (3χ)

Accuracy

±0.5%F.S, ±1%F.S, ±2%F.S

Stability

Typical value 0.25%F.S, Max.: 0.5%F.S

Operating temperature

-20°C~60°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti

Output signal

The relay output

Power supply

24Vdc

Contact load

0.5A 125VAC/1A 30VDC

Insulation

>100M Ω@50V

Pressure port

M20×1.5, G1/4, G1/2, R1/2, NPT1/2

Pressure type

G,S

Response time: 10ms

EMI/EMC

EMI: EN50081-1/-2; EMC: EN50082-2

2. Feature :

Accuracy : 0.5%F.S, 1%F.S, 2%F.S

Adjustable alarm output

With on-site switch indicator

Various pressure range and switch output

3. Application:

Hydraulic control

Petrochemical

Pressure Instruments

Automatic detection system

Machine control

Metallurgical and Chemica

4. Electronic interface and signals definition

Electric connection

Color

Red

Black

White

Definition

Power+

Power -

Common terminal

Color

Blue

Green

Grey

Definition

Normally Closed

Normally open

Shield

High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output

Packaging & Shipping

5. Package

High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output

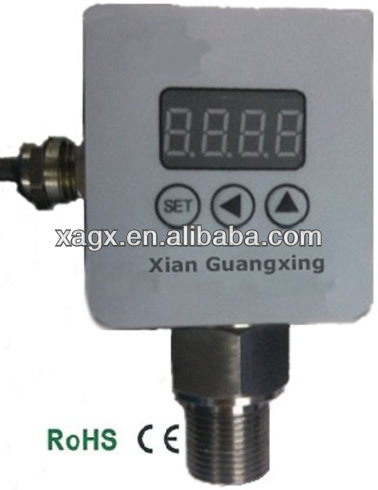

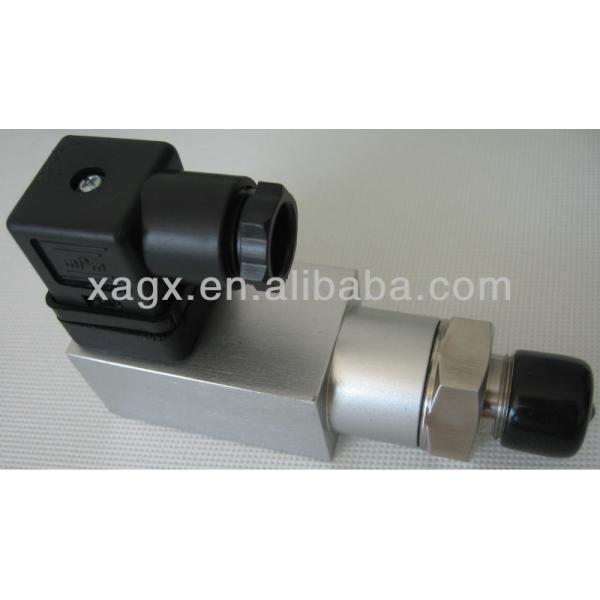

6. Product picture
High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output
High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output

High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output
High Performance Oil Pressure Switch,Temperature -20°C~60°C,Various pressure range and switch output
