micro/low Differential pressure sensor
Feature
High sensitivity
High accuracy and high stability
Mini outline, easy to install
Application
Boiler
Dust precipitator
Air duct pressure
Differential and negativepressure
Instruction
GXPS540 Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.
Parameter
Measuring range: | 0-100Pa~100Kpa; -50KPa~-50Pa-50Pa~50Kpa |
Protection: | IP65 |
Medium Measurement: | Non-corrosive dry gas; weak corrosive and damp gas |
Output signal: | 4~20mA, 1~5V, 0~5V Optional |
Operating voltage: | 24VDC |
Accuracy: | ±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional |
Adjustment | Zero and range are adjustable externally |
Medium temperature: | -10~100°C |
Ambient temperature : | -20~80°C |
Electric Interface: | outlet cable |
Shell material: | Aluminum alloy |
Dimension
Ordering information
GXPS540 | | Product Serial |
| X (Pa or KPa) | | Pressure Range |
| 0.3 | | ±0.3%FS Accuracy |
0.5 | | ±0.5%FS Accuracy |
1.0 | | ±1%FS Accuracy |
| 4mA | | 4~20mA Output |
V0 | | 0~5VDC Output |
V1 | | 1~5VDC Output |
RSV | | reserved |
| F8 | | Φ8 tower-type interface |
RSV | | reserved |
| CX | X meters Cable |
RSV | reserved |
GXPS540 | 1KPa | 0.3 | 4mA | F6 | C2 | Example |
Other Differential pressure sensors for your choice
**************************************************************************************************

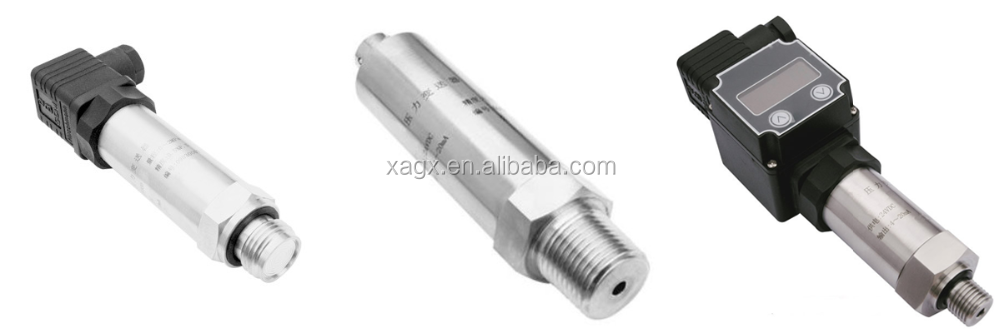

More excellent product for pressure transducer please refer to:
