KLD806 Bean Radar Level Sensor With Flange Installation And Small Beam Angle
Introduction
Beam Angle
The beam angle is the beam angle at which the energy density of the radar wave reaches half of its maximum value (3dB width). Microwaves emit signals out of beam range and can be reflected by interfering objects.
The larger the antenna size and the smaller the beam angle α, the less interference echoes will be generated.
For more accurate measurements, avoid installing any internal devices (such as limit switches, temperature sensors, bases, vacuum rings, heating coils, baffles, etc.) within the range of the signal beam.
Feature
- High Frequency 80GHz, More Focus
- One type of PTFE Antenna, no cable, rod, or drop structure.
- Suitable for long/tall/narrow applications
- Not affected by temperature changes, dust or vapors
- Dielectric Constant > 2 is recommended
- Support small batch OEM service
| KLD806
| Medium: solid, storage container, process container, strong dust application Measuring range: 0.3m~10/20/30/60/100m Process connection: flange ≥ DN100 Process temperature: -40～110℃ Process pressure: -0.1～0.3MPa Antenna size: 76mm lens antenna (purge optional) Antenna material: PTFE Accuracy: ±5mm Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/plastic/stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus |
Dimensions
Installation
1.Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
① datum plane
② vessel center or axis of symmetry
2.Hoisting Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions

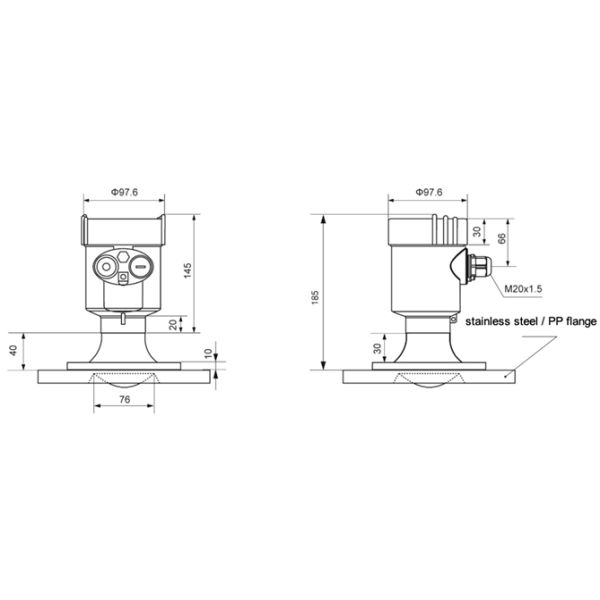

Casing Dimension
Unit in mm:
Production:
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
