30VDC IP65 SS316L 100Mpa Precision Pressure Sensor

Name: 30VDC IP65 SS316L 100Mpa Precision Pressure Sensor
Brand: KACISE
Price: 1 USD

Wholesale 30VDC IP65 SS316L 100Mpa Precision Pressure Sensor from china suppliers

Brand Name : KACISE

Model Number : KPT100

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000000pcs/month

Delivery Time : 3-8 working days

Range : -0.1...0~100Mpa

Accuracy : ±0.25%F.S, ±0.5%F.S,

Output : 4-20mA, 0~5V, 0~10V

Material : SS316L

name : Precision Pressure Sensor

model : KPT100

Contact Now

Diffused silicon stainless steel high precision wide range absolute pressure general use pressure transmitter

Introduction

KPT100 pressure transmitter uses diffused silicon pressure core as the sensing element, selects the all-digital circuit, the overall performance is stable and reliable, can carry on the long-distance signal transmission.All stainless steel structure, easy to install.Has the extremely high anti-interference and the anti-impact ability. Widely used in pneumatic, hydraulic, water supply, fire protection, environmental protection, medical and other industries.

Application

All stainless steel construction
316L stainless steel diaphragm
High precision, long - term stability
Strong anti - interference, anti - vibration, anti - impact
Protection level IP65
Wide range, can measure absolute pressure, gauge pressure and seal gauge pressure

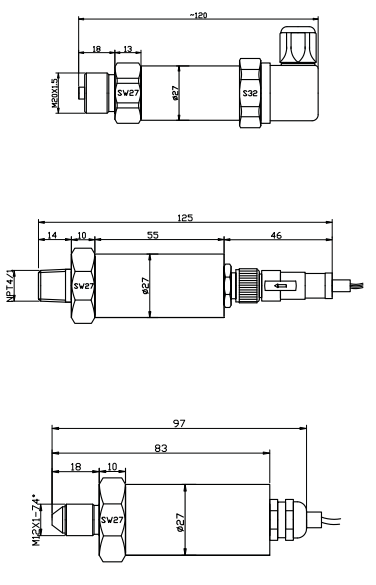

Dimensions in mm

30VDC IP65 SS316L 100Mpa Precision Pressure Sensor

Specification

Pressure range	-0.1...0~100Mpa	Accuracy	≤0.25%F.S
Stability	≤0.1%/year	Overload	≤200%F.S
Power Supply	12-30VDC	Wiring Way	A variety of optional
Protection	IP65	Relative Humidity	0~90%RH
Environment temperature	-30~80°C	Medium temperature	-40~150°C

Order Information

KPT100	Universal pressure transmitter
	Range		Pressure range: -0.1MPa...0～100MPa
	［0～X］bar		X: Actual pressure range
		Code		Signal output
		I		4mA~20mA DC
		V		0V~5V/10V DC
		R		RS485
			Code	Electric connection
			H	Hirsman
			M	M12
			P	PG7 Cable
				Code	Thread connection
				M20	M20×1.5 Internal and external thread
				G14	G1/4 Internal and external thread
				G12	G1/2 Internal and external thread

Our Company

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

30VDC IP65 SS316L 100Mpa Precision Pressure Sensor
