Dissolved CO2 sensor - Measuring carbon dioxide in water

Name: Dissolved CO2 sensor Measuring carbon dioxide in water
Brand: KACISE
Price: 1 USD

Wholesale Dissolved CO2 sensor - Measuring carbon dioxide in water from china suppliers

Brand Name : KACISE

Model Number : KWS-5000

Certification : CE

Place of Origin : China

MOQ : 0-100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability : 1000 Pieces per Week

Delivery Time : 5-8 working days

Packaging Details : carton/wooden case, or customers requests

Measuring range : 2000ppm/5000ppm/10000ppm

Response time : 10 sec

Accuracy : ±20ppm/±50ppm/±300ppm

Protection level : IP68

Temperature range : 0 ~ 80°C

Power supply : DC 5V

Size : Φ27*104.8mm

product material : POM

Contact Now

KWS-5000 Dissolved CO2 Sensor In Water

Introduction

KWS-5000 is a gas detection module based on NDIR infrared absorption principle, which is suitable for detecting the concentration of carbon dioxide in aqueous solution. KWS-5000 adopts a patented optical cavity, adopts convection diffusion ventilation method and protective cover, which not only accelerates the gas convection diffusion speed, but also waterproof and breathable. Unique waterproof structure, detachable, easy to clean the outer casing of the sensor.

Feature

Unique waterproof structure, can be disassembled
Lightweight housing for easy field installation
Rich interface, convenient for customers to choose
Provides zero calibration, sensitivity calibration and clean air calibration

Application

Aquaculture
Agricultural greenhouse environmental monitoring
Biopharmaceutical Environmental Monitoring
Water Quality Analysis
Solution analysis

Technical Specifications

Item	Parameter
Measuring Range	2000ppm/5000ppm/10000ppm
Response Time	<20 sec
Protection Level	IP68
Storage Temperature	-20 ~ 80°C
Operation Temperature	-20 ~ 60°C
Output	RS485 / 4-20mA / voltage, IIC, UART, PWM
Power Supply	DC 5V (RS485 / 4-20mA is DC12V power supply)
Size	Φ27*105mm
Probe Cable Length	Default 0.5m
Maximum Working Pressure	1.5 bar
Product Material	ABS

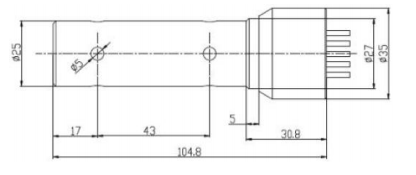

Dimensions

Dissolved CO2 sensor - Measuring carbon dioxide in water

Signal interface definition

There is 3 kinds of signal output like below:

		Signal definition
SN	Wire color	UART+IIC interface	UART+485 interface	UART+4-20mA interface
1	Red	5VDC	12V	12V
2	Black	GND	GND	GND
3	Green	Uart_RXD	Uart_RXD	Uart_RXD
4	Yellow	Uart_TXD	Uart_TXD	Uart_TXD
5	White	IIC_SDA	RS485A	4-20mA(0.4-2V) output
6	Brown	IIC_SCL	RS485B	Reserved
