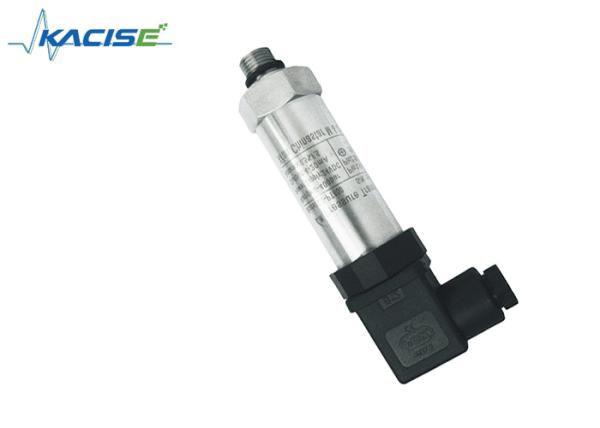

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability

Brand Name : Kacise

Model Number : GXPS600

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 per week

Packaging Details : normal

Pressure range : 0～2MPa……60MPa

Power : 10～30Vdc

Electric interface : RS485

Pressure type : Gage pressure, Absolute pressure

Pressure port : M20×1.5, G1/4, G1/2, NPT1/2

Operating temperature : -10°C～60°C

Contact Now

GXPS600 Multiple Pressure Range Piezoresistance Core Series Digital Pressure Transmitter
Introduction

The characteristics of the GXPS602 pressure transmitter are with high reliability, high stability, and digital output. Widely used in gas, liquid pressure testing, such as water, oil, mildly corrosive liquids and gases. This series of products has 1Cr18Ni9Ti stainless steel structure, RS485 output.

GXPS 600A: 3.6Vdc battery-powered, low-power products

GXPS 600C: 3.6Vdc battery-powered, low-power and low accuracy products

Feature ​

  • Accuracy: ±0.5%F.S,±1%F.S
  • Diffused silicon oil-filled core or ceramic piezoresistance core, optional
  • Multiple pressure range
  • Screw thread installation
  • RS485 Digital output

Electronic interface and signals definition

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability
Parameter

Spec. Value Remarks
Type GXPS602 GXPS602A GXPS602C 1MPa≈145PSI
Pressure range

0～2MPa……60MPa

= 0~290.076PSI…8702.28PSI

=0~20BAR…600bar

0~203.893mH2O…6116.2mH2O

 1mH2O=9.81Kpa
Over pressure safe 1.5 times nominal pressure (1.5X)
Secondary Containment 3times nominal pressure(3X)
Power 10～30Vdc 3.6Vdc battery
Electric interface RS485
Static operating current <15mA <1mA
Accuracy 0.5% 1%
Output signal RS485
Pressure type Gage pressure, Absolute pressure
Operating temperature -10°C～60°C
Pressure port M20×1.5, G1/4, G1/2, NPT1/2

Application

  • Hydrologic monitoring
  • Constant pressure water supply
  • Frequency conversion water supply
  • Sewage treatment
  • Water-saving irrigation
  • Hydroelectric power
  • Diversion works

Package

1pc/box, many boxes/ ctn, or customized available.

Ordering information

GX-Type—Range—Output—Power—Pressure port – Connection – Cable length—Package –Other

  • Type : PS602=ordinary, PS602A=low-power, PS602C=Low-power + low accuracy
  • Range: 0~2Mpa…60MPa
  • Output: RS4=RS485
  • Power: 10~30Vdc, 3.6Vdc battery
  • Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, N2=NPT1/2
  • Connection: H=DIN43650-A, CW=water proof connector outlet
  • Cable length: XXm=__ __meter
  • Package: Bb, Foam
  • Other: GXL, HTL
